DIY Power Station: Your Guide to Building Affordable, Custom Power

Table of Contents show

Portable power stations are handy for camping trips, emergencies, or off-grid projects. However, store-bought models can cost $500 to $3,000+ and more. Building your own DIY power station saves money, lets you customize capacity and features, and teaches valuable skills. In this guide, we’ll break down everything you need to know, even if you’ve never touched a soldering iron.

What Is a DIY Power Station?

A DIY power station is a portable battery system that stores and delivers electricity. Unlike pre-made units, you choose the components to match your needs. Think of it like building a Lego set: you pick the battery size, outlets, and charging methods (solar, wall, car) to create a system that powers phones, laptops, lights, or even appliances.

Key Benefits:

Cost: Save 30–50% vs. commercial models.
Customization: Add ports, expand capacity, or prioritize solar charging.
Repairability: Replace individual parts if they break.

Understanding the Components

Every DIY power station has five core parts:

1. Battery

The “fuel tank” of your system.

Lithium Iron Phosphate (LiFePO4): Lightweight, long-lasting (3,000+ cycles), and safe. Best for most users.
Lead-Acid: Cheaper but heavier and shorter-lived.

Battery Type	Cost per kWh	Lifespan	Weight	Best For
LiFePO4	$200–$400	10+ yrs	15–30 lbs	Camping, frequent use
Lead-Acid (AGM)	$100–$200	3–5 yrs	40–60 lbs	Budget builds, backup

(Source: DwnShifters, Instructables)

2. Inverter

Converts battery power (12V/24V DC) to household electricity (120V AC).

Modified Sine Wave: Affordable but may damage sensitive electronics.
Pure Sine Wave: Safer for laptops, medical devices, and appliances.

Tip: Match the inverter’s wattage to your needs. A 1,000W inverter can run a blender or microwave; 300W is enough for phones and lights.

3. Charge Controller

Manages solar panel input to prevent battery overcharging.

PWM: Budget-friendly for small systems.
MPPT: 20–30% more efficient for larger setups.

4. Outlets & Ports

USB-C/PD: Fast-charges modern devices.
12V Car Socket: Powers coolers or air pumps.
AC Outlets: For household plugs.

5. Case & Wiring

A sturdy toolbox or Pelican case protects components. Use 10–8-gauge wires for high-power connections.

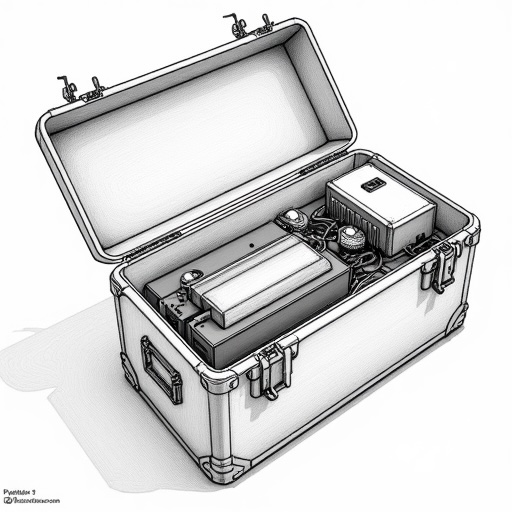

(Graphic Suggestion: Diagram of components inside a toolbox with labeled wiring.)

Step-by-Step Build Guide

1. Plan Your Power Needs

List devices you’ll power and their wattage. Example:

Device	Watts	Runtime (per 500Wh battery)
LED Camping Light	10W	50 hours
Laptop	60W	8 hours
Mini Fridge	100W	5 hours

Next, calculate the total wattage that you’re DIY power station will need to provide using this formula:

Formula: Battery Capacity (Wh) = Total Watts × Hours Needed

2. Source Components

Battery: 12V 100Ah LiFePO4 (~1,200Wh) from Renogy or Ampere Time ($300–$500).
Inverter: 1,000W Pure Sine Wave ($120–$200).
Charge Controller: 20A MPPT ($50–$80).
Case: 18” Toolbox ($40–$60).

Budget Tip: Repurpose old car batteries or inverters for ultra-low-cost builds.

3. Component Layout

Battery (LiFePO4, 12V 100Ah)

Located at the bottom center for stability.
Labeled terminals: + (Red) and – (Black).

Inverter (Pure Sine Wave, 1000W)

Mounted on the left side, near the battery.
Connected via 10 AWG wires (red/black) with a 100A fuse on the positive line.

Solar Input

Exterior MC4 connectors on the toolbox lid, linked to the charge controller.

Charge Controller (MPPT, 20A)

Right side, near solar input ports.
Solar input ports labeled “Solar In” (MC4 connectors).

Outlets & Ports

AC Outlets (120V): Front panel, linked to the inverter.
USB-C/PD + USB-A: Front panel, powered by a 12V-to-5V converter.
12V Car Socket: Front panel, fused (15A) directly to the battery.

Fuse Box

100A Fuse: Between battery (+) and inverter.
30A Fuse: Between battery (+) and charge controller.

Battery Management System (BMS)

Attached to the battery to prevent overcharging/overheating.

Ventilation

Vents/holes on the toolbox sides for airflow.

Wiring Diagram:

Connection	Wire Gauge	Color	Fuse Rating
Battery → Inverter	10 AWG	Red	100A
Battery → Charge Controller	12 AWG	Red	30A
Battery → Fuse Box	12 AWG	Red	30A
Fuse Box → DC Components	16 AWG	Red	15A
Ground (All Components)	12 AWG	Black	N/A

Power Flow:

Solar Panels → Charge Controller → Battery
Battery → Inverter → AC Outlets
Battery → Fuse Box → USB/Car Socket

Visual Labels:

Red Arrows: Positive current flow.
Black Arrows: Ground/negative connections.
Fuse Symbols: 🔋 at critical junctions.
Solar Input: ☀️ icon near MC4 ports.

Optional Add-Ons:

Bluetooth Battery Monitor: Mounted on the lid for real-time power tracking.
Expandable Battery Ports: Extra terminals for linking additional batteries.
Waterproof Seals: For outdoor use (e.g., camping in rain).

Safety Notes:

Use heat-resistant silicone wires for high-current paths (battery/inverter).
Secure components with zip ties or brackets to prevent movement.
Test with a multimeter before closing the enclosure.

4. Wiring Flow

Solar Panels → Charge Controller (via MC4) → Battery (regulated charging).
Battery → Inverter → AC Outlets (for 120V devices).
Battery → USB Ports/Car Socket (for DC devices).

5. Color Coding

Red Lines: Positive connections (battery → components).
Black Lines: Negative connections (common ground).

6. Key Labels

Wire Gauge:
- 10 AWG: Battery to inverter.
- 12 AWG: Battery to charge controller.
- 16 AWG: DC components.
Safety Features:
- Fuses on all positive lines.
- Ground symbol (⏚) near the battery.
Annotations:
- “Keep wires short for high-current paths!”
- “Use heat-resistant insulation for inverter connections.”

7. Assemble the System

Mount Components: Secure the battery, inverter, and charge controller in the case.
Wire the Battery: Connect to the charge controller and inverter using fuse-protected cables.
Add Outlets: Install USB ports and AC outlets on the case exterior.
Test: Use a multimeter to check connections before sealing the case.

(Graphic Suggestion: Step-by-step photo guide of wiring a battery to an inverter.)

DIY vs. Commercial Power Stations

Feature	DIY Power Station	Commercial Model (e.g., Jackery)
Cost	$300–$800	$500–$3,000+
Customization	Full control over parts	Limited to pre-built design
Portability	Heavier (20–50 lbs)	Lightweight (10–30 lbs)
Repair Cost	$20–$100 (per component)	$150+ (often requires replacement)

Best For DIY: Campers, tinkerers, or anyone needing high capacity on a budget.
Best For Commercial: Travelers prioritizing portability and plug-and-play ease.

Safety Tips

Use Fuses: Protect against short circuits.
Avoid Overloading: Stay below 80% of the inverter’s max wattage.
Ventilate: LiFePO4 batteries are safe but can overheat in sealed spaces.
Label Wires: Prevent confusion during repairs.

Pro Tips for Unique Builds

Solar-Ready: Add MC4 connectors for solar panels.
Expandable: Use modular batteries (e.g., EcoFlow DELTA Pro) for extra capacity.
Smart Features: Install a Bluetooth battery monitor ($20) to track power levels.

Maintenance & Upgrades

Monthly: Check wire connections and clean dust.
Yearly: Test battery health with a capacity tester.
Upgrade: Swap in a larger inverter or add a second battery.

Final Thoughts

Building a DIY power station is like assembling a puzzle-each part has a purpose, and the result is a custom solution that grows with your needs. Whether you’re powering a weekend camping trip or preparing for emergencies, this project saves money and empowers you to take control of your energy needs.

(Graphic Suggestion: Completed DIY power station in use at a campsite, charging phones and lights.)
